Spring supports may not be the most visible components in an industrial or HVAC installation, but they play an important role in supporting equipment and piping while allowing controlled vertical movement.

In systems where temperature changes, thermal expansion, operating loads or movement can affect piping and equipment, a properly selected spring support can make a significant difference to system reliability.

So, what exactly are spring supports, what types are available, and how do you select the right one?

Let's break it down in a practical way.

5

What Is a Spring Support?

A spring support is a mechanical support that uses a spring mechanism to carry the weight of piping, equipment or other components while allowing controlled movement.

Unlike a rigid support, a spring support can accommodate vertical displacement caused by thermal expansion, contraction or operational movement.

The basic principle is simple:

Load → Spring Mechanism → Support Structure

As the supported system moves vertically, the spring compresses or extends, helping maintain support without excessively restricting movement.

Spring supports are commonly used in:

• HVAC piping systems
• Hot and chilled-water pipelines
• Steam and process piping
• Industrial equipment
• Power plants
• Chemical and process industries
• Manufacturing plants
• Mechanical services installations

Why Are Spring Supports Important?

Imagine a long pipeline carrying hot fluid. When the temperature increases, the pipe expands. If the pipe is rigidly restrained at every support point, that expansion can create significant forces and stresses.

A spring support provides controlled flexibility.

It can help:

1. Accommodate Thermal Movement

Spring supports allow vertical movement while continuing to support the pipe.

2. Maintain Load Support

The spring mechanism continues carrying the supported load as the system moves.

3. Reduce Stress on Piping

Properly selected supports can help manage loads and movements within the piping system.

4. Improve System Flexibility

They provide controlled movement instead of forcing the system to remain completely rigid.

5. Support Equipment and Services

Spring-based supports can be useful where conventional rigid supports are unsuitable because of movement or vibration considerations.

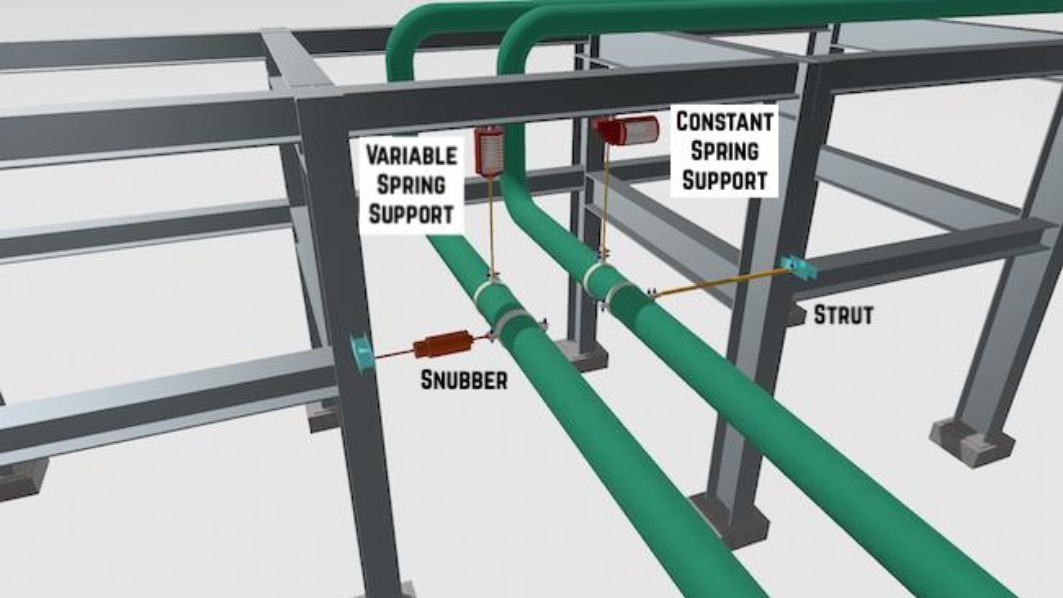

Types of Spring Supports

Spring supports are generally divided into two major categories:

1. Variable Spring Supports

A variable spring support changes its supporting force as the spring moves through its operating range.

In other words, the load carried by the spring varies with displacement.

These supports are commonly used where:

• Vertical movement is relatively limited.
• Some load variation is acceptable.
• The system can tolerate changes in support load during operation.
• A more economical solution is required.

5

How Does a Variable Spring Support Work?

As the pipe moves vertically, the spring compresses or extends.

Because the spring force is related to its displacement, the supporting load changes as the position changes.

This is why selection should consider both:

Cold Load + Operating Movement + Hot Load

rather than looking only at the initial weight.

2. Constant Spring Supports

A constant spring support, sometimes called a constant load hanger, is designed to provide a relatively consistent supporting force over a specified vertical travel range.

This is particularly useful where large vertical movement occurs and maintaining a more consistent support load is important.

Typical applications include:

• High-temperature piping
• Steam pipelines
• Large process piping
• Power-generation systems
• Long pipelines with significant thermal movement
• Critical piping arrangements

6

Variable vs Constant Spring Supports

FeatureVariable Spring SupportConstant Spring SupportSupporting loadChanges with movementRelatively constantMovementSuitable for limited/moderate movementSuitable for larger movementMechanismComparatively simpleMore complexCostGenerally lowerGenerally higherTypical useHVAC & general pipingCritical/high-movement pipingSelectionLoad + movementLoad + movement + constant-load requirement

The correct choice depends on the actual piping layout, operating conditions and allowable load variation.

Where Are Spring Supports Used?

Spring supports are not limited to one industry. Their application depends largely on the movement and loading requirements of the system.

HVAC Systems

In HVAC installations, spring-based supports may be used for:

• Chilled-water piping
• Hot-water piping
• Heating systems
• Large mechanical services
• Equipment support arrangements
• Piping near vibration-sensitive equipment

However, it's important to distinguish between a spring support for load/movement control and a spring vibration isolator specifically designed to reduce vibration transmission.

They may use similar spring technology, but their design objectives are different.

Industrial Piping

Industrial piping frequently experiences temperature changes and thermal movement.

Spring supports can be used around:

• Process pipelines
• Steam lines
• Hot-fluid systems
• Chemical processing equipment
• Refineries
• Power-generation systems

Here, support selection must consider operating temperature, pipe movement, loads and the overall piping stress design.

Equipment Support

Spring-based support arrangements can also be incorporated into certain equipment and machinery applications where controlled movement or resilient support is required.

The design should always be based on the equipment's actual operating load and movement characteristics.

Spring Support vs Rigid Pipe Support

A rigid support holds a pipe at a fixed position.

A spring support allows controlled movement while continuing to provide support.

ParameterRigid SupportSpring SupportVertical movementRestrictedAccommodatedThermal expansionMay create additional forcesBetter suited to movementLoad variationGenerally fixedChanges according to designFlexibilityLowHigherTypical applicationStable/non-moving systemsSystems with vertical movement

This doesn't mean spring supports are always better. The right support is the one that matches the movement and load requirements of the system.

How to Select the Right Spring Support

Spring support selection should never be based simply on pipe size.

Several engineering parameters need to be considered.

1. Operating Load

Determine the actual load carried by the support.

This can include:

• Pipe weight
• Fluid weight
• Insulation
• Valves
• Flanges
• Accessories
• Additional equipment loads

The load per support point is particularly important.

2. Vertical Movement

Determine how much the pipe or equipment is expected to move vertically.

For example:

Cold Position → Operating Position → Hot Position

The spring support must accommodate the required travel without reaching an unsuitable operating condition.

3. Spring Rate

Spring rate indicates how much force changes for a given amount of spring deflection.

It is an important parameter when selecting a variable spring support.

A spring with an inappropriate rate may result in excessive load variation or inadequate support characteristics.

4. Cold and Hot Loads

For thermal piping, both conditions should be evaluated.

Cold Load: Load at the installation/cold position.

Hot Load: Load at the operating position.

Understanding the difference between these conditions helps determine whether a variable or constant spring arrangement is appropriate.

5. Required Travel

The spring support should provide sufficient travel for the expected movement.

A support operating too close to its travel limit can compromise performance and serviceability.

6. Mounting Arrangement

Consider how the spring support will physically connect to the system.

Possible arrangements include:

• Rod hanger
• Ceiling-supported hanger
• Beam attachment
• Pipe clamp connection
• Floor-supported arrangement
• Equipment support arrangement

The connection hardware must also be suitable for the applied load.

7. Operating Environment

Environmental conditions can significantly affect service life.

Consider:

• Temperature
• Humidity
• Corrosive atmosphere
• Outdoor exposure
• Chemical exposure
• Installation location

Material and surface protection should be selected accordingly.

Spring Supports Are Not the Same as Vibration Isolators

This distinction is particularly important in HVAC and mechanical installations.

A spring support is primarily intended to:

Support load while accommodating controlled movement.

A vibration isolator is primarily intended to:

Reduce the transmission of vibration from equipment to the supporting structure.

There can be applications where spring-based supports perform both functions, but the design requirements are different.

For rotating equipment such as pumps, fans, AHUs and other machinery, vibration isolation should be evaluated separately, including natural frequency, static deflection, disturbing frequency and transmission paths.

Common Spring Support Selection Mistakes

❌ Selecting Only by Pipe Diameter

Pipe size does not tell you the actual load or movement.

❌ Ignoring Thermal Movement

Hot and cold conditions can produce significantly different support positions.

❌ Using the Same Spring Everywhere

Each support location may experience a different load and movement.

❌ Ignoring Installation Position

The actual installed position should correspond with the design conditions.

❌ Selecting Without Considering Travel

Insufficient spring travel can become a major problem during operation.

❌ Confusing Vibration Isolation With Load Support

A spring support and a vibration isolator may look similar but can have very different design objectives.

Why Custom Spring Design Can Matter

Every piping and equipment installation is slightly different.

Two systems may have the same pipe diameter but completely different:

• Loads
• Operating temperatures
• Vertical movements
• Support spacing
• Spring rates
• Mounting configurations
• Environmental conditions

This is why application-based spring selection is often more useful than simply choosing a standard spring from a catalogue.

6

How SILARIS Can Support Your Spring Requirements

At SILARIS Mechaflex Pvt Ltd, spring technology is approached from an application and engineering perspective rather than simply treating a spring as a standard component.

Depending on the requirement, SILARIS can support applications involving:

• Industrial coil springs
• Spring supports
• Spring hangers
• HVAC vibration isolators
• Floor-mounted vibration isolators
• Hanger vibration isolators
• Equipment support solutions
• Custom spring-based solutions

For a new application, providing details such as load, required movement, dimensions, operating conditions and mounting arrangement can help determine a suitable spring configuration.

The objective is simple: match the spring characteristics to the actual application.

Spring Support Selection Checklist

Before finalising a spring support, check:

☑ Load per support point

☑ Cold and operating loads

☑ Expected vertical movement

☑ Required spring travel

☑ Spring rate

☑ Variable or constant support requirement

☑ Mounting arrangement

☑ Operating temperature

☑ Environmental conditions

☑ Required service life

☑ Installation and adjustment requirements

A few minutes spent evaluating these parameters can prevent much bigger problems during installation and operation.

Final Takeaway

Spring supports are an important part of piping and mechanical systems where load support and controlled movement need to work together.

Whether you're designing an HVAC installation, industrial pipeline, process plant or specialised equipment, the correct spring support should be selected based on actual load, movement, spring rate, operating conditions and mounting requirements.

And when the application doesn't fit a standard solution, an engineering-led approach to spring selection can make all the difference.

SILARIS Mechaflex Pvt Ltd can support businesses, consultants, contractors and OEMs looking for industrial springs, spring supports, spring hangers and vibration-control solutions tailored to their application requirements.
